BUILDER’s Concept Home 2011

Production housing in the suburbs that is affordable, beautiful, and net zero? Builder's Concept Home 2011 proves it's possible to have it all.

13 MIN READ

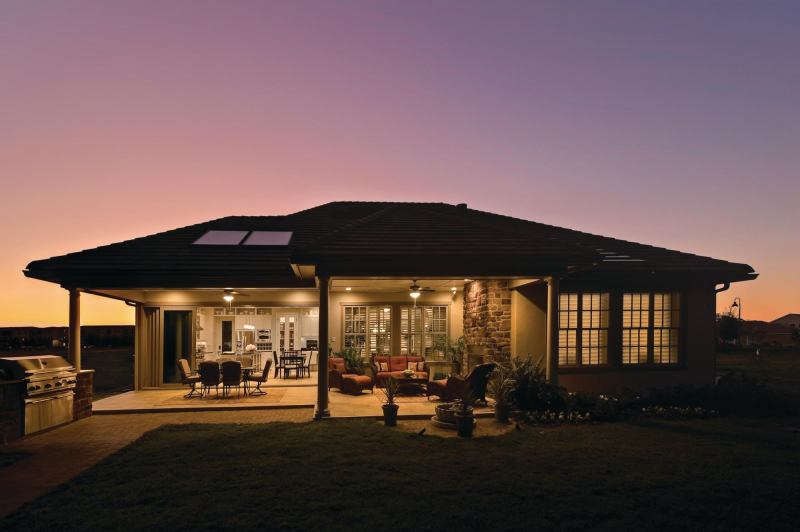

Builder Concept Home 2011

James F. Wilson

Builder Concept Home 2011

By

Take the Virtual Tour

Click here to take a virtual tour of the home.

She’s smart, beautiful, and virtuous, but this show home isn’t a supermodel. This isn’t the fantasy house that you love, but can’t have. It’s a dream that’s well within reach—the house equivalent of the girl next door.

Blessed with classic American good looks and created for middle-class home buyers, Builder’s Concept Home 2011 lives comfortably on a modest footprint and is super efficient in its resource consumption. So efficient, in fact, that it produces as much energy as it uses. Yep. It’s net zero.

Look behind the walls, under the slab, and up in the attic of this house, and you’ll find some serious building muscle and green technology. At the same time, its refined spaces are visions of serenity and light. This is possible because the science and systems that power the house are mostly transparent, allowing the design to take center stage.

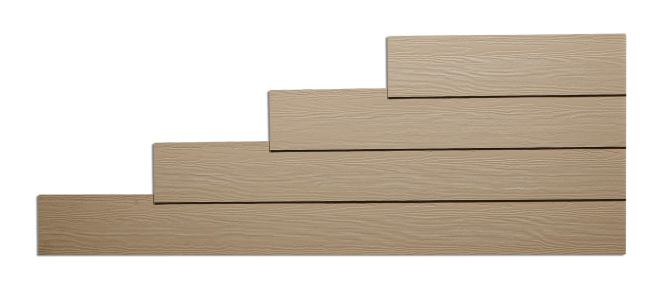

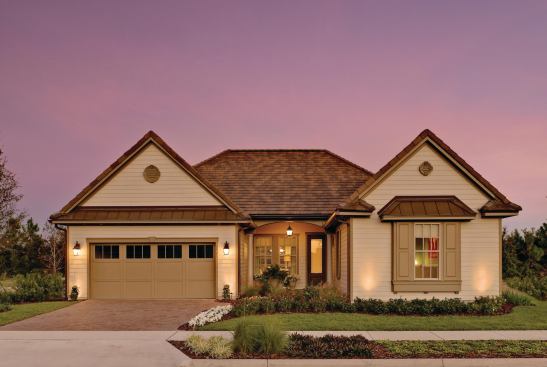

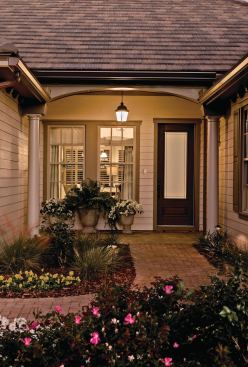

House of Two Gables Clad in James Hardie fiber-cement siding and topped with a cool roof by MonierLifetile, the one-story home keeps a modest profile and fits nicely into its lakeside setting. Its colonial-inspired elevation would feel right at home in lots of different neighborhoods and small towns across America.

James F. Wilson

House of Two Gables Clad in James Hardie fiber-cement siding and topped with a cool roof by MonierLifetile, the one-story home keeps a modest profile and fits nicely into its lakeside setting. Its colonial-inspired elevation would feel right at home in lots of different neighborhoods and small towns across America.

To prove this appealing combination possible, we turned to one of the nation’s premier home builders, KB Home, and its partner, style icon Martha Stewart, to craft a residence that has all the elegance of a larger luxury estate, minus the steep utility bills, expensive upkeep, superfluous rooms, and unattainable mortgage.

And so, we present The KB Home GreenHouse: An Idea Home Created With Martha Stewart. Evidence, we hope, that even a traditional house in a traditional subdivision can practice sustainability. That builders can build smaller, more energy-efficient homes for average buyers and still turn a profit. And that Martha’s legendary green thumb applies to more than her garden.

Sunny Disposition Natural light is a key ingredient in any greenhouse, and this one in particular. It reduces electricity needs and accentuates the home's fresh, clean personality.

James F. Wilson

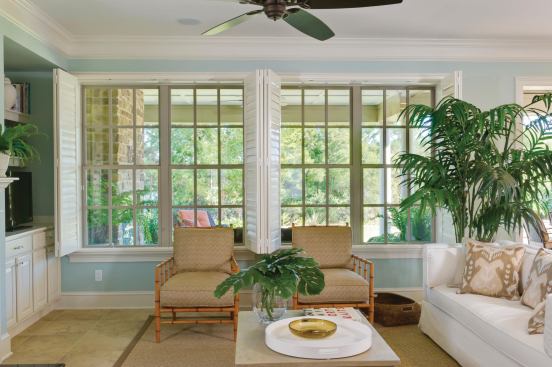

Sunny Disposition Natural light is a key ingredient in any greenhouse, and this one in particular. It reduces electricity needs and accentuates the home's fresh, clean personality.

Architecture can be traditional without feeling stuffy or pompous. The GreenHouse shows how. Designed in the spirit of Martha Stewart’s personal residence in Bedford, N.Y., it’s tasteful yet simple, with clean lines and plenty of connections to the outdoors. Large windows, 9-foot-4-inch-tall ceilings, crisp crown molding, and painted wood paneling make the interiors feel luxe and substantial, even if they aren’t big. And the plan isn’t overly prescriptive, so homeowners can choose how they wish to furnish and use its spaces.

“I like a home to be suffused in natural light and airy, with a generous amount of open space,” says the legendary founder of Martha Stewart Living Omnimedia and leading authority on all things domestic. Delivering on that vision, the heart of the home is a large entertainment area that blends dining room, great room, kitchen, and patio into a succession of fluid spaces.

Party Circuit Socializing comes naturally in this casual home. Minimal walls allow long sight lines to extend all the way through the house from the front entry to the rear patio. These visual cues make it intuitive for guests to meander through the great room and kitchen while bypassing the private zones (containing bedrooms and utility spaces) which are concentrated on either side of this social core.

Party Circuit Socializing comes naturally in this casual home. Minimal walls allow long sight lines to extend all the way through the house from the front entry to the rear patio. These visual cues make it intuitive for guests to meander through the great room and kitchen while bypassing the private zones (containing bedrooms and utility spaces) which are concentrated on either side of this social core.

But beauty is only part of the story. Placing functionality on par with aesthetics, the plan is also big on multitasking. Its flexible den can double as a home office, playroom, media room, or extra bedroom. A kitchen workstation provides a great spot for homework or paying bills, but is also command central for the home’s energy monitoring system, a Web-based tool that allows homeowners to track their electric, water, and propane consumption, as well as solar energy production.

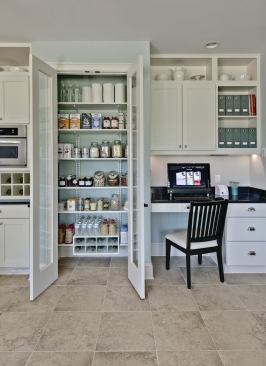

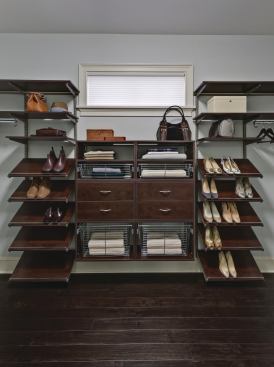

Storage Heaven Cabinets, cubbies, and built-in shelving from Merillat (seen here in Tolani maple with a chiffon finish) keep spaces looking neat and uncluttered.

James F. Wilson

Storage Heaven Cabinets, cubbies, and built-in shelving from Merillat (seen here in Tolani maple with a chiffon finish) keep spaces looking neat and uncluttered.

And yet the GreenHouse makes a few unorthodox moves that run counter to the current conventional wisdom about building smaller. For example, it keeps its formal dining room (a space that’s been value-engineered out of many of today’s smaller homes) and allocates a larger-than-average share of square footage to storage. Built-ins are pervasive, the secondary bedrooms have walk-in closets, and the master suite assigns almost as much space to its dressing area as it does to the master bath.

This isn’t complete folly. Setting aside square footage for storage actually results in rooms that feel larger, Stewart says, because they aren’t cluttered with armoires and other bulky case goods. “The dressing area off the master bedroom has built-in cabinets and drawers to create storage space for clothing. That eliminates the need for dressers in the bedroom,” she points out.

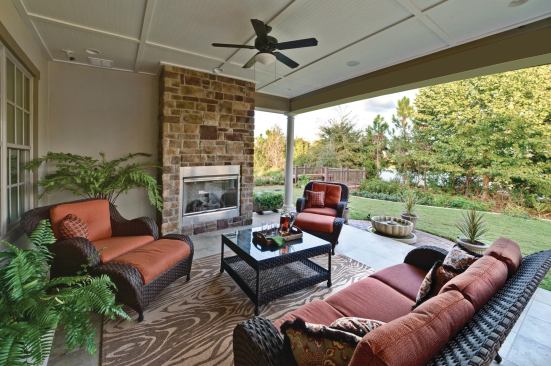

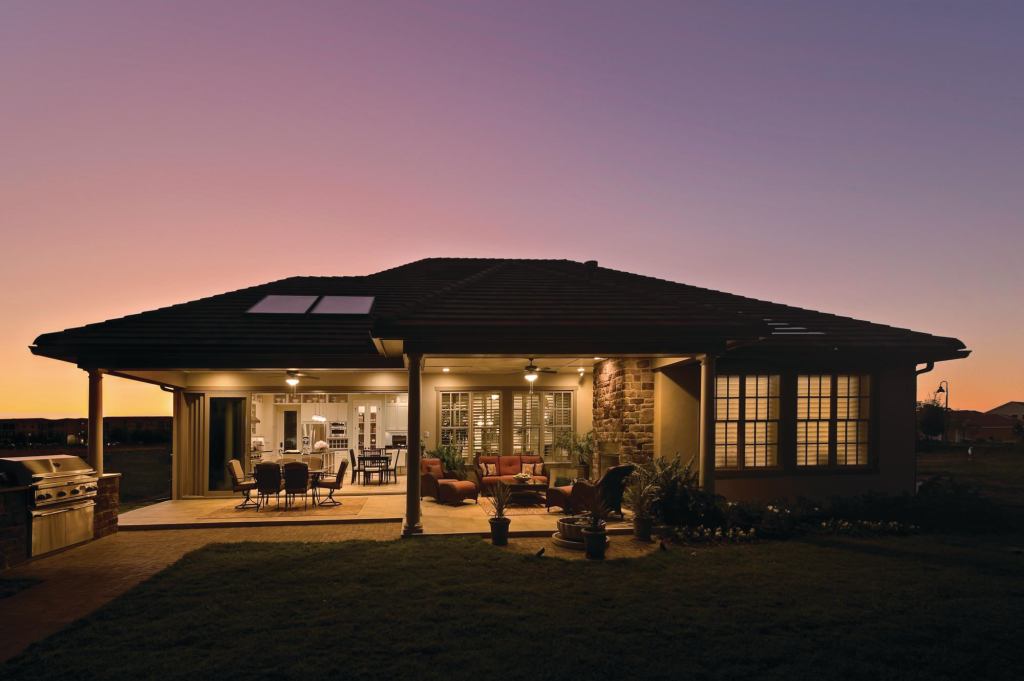

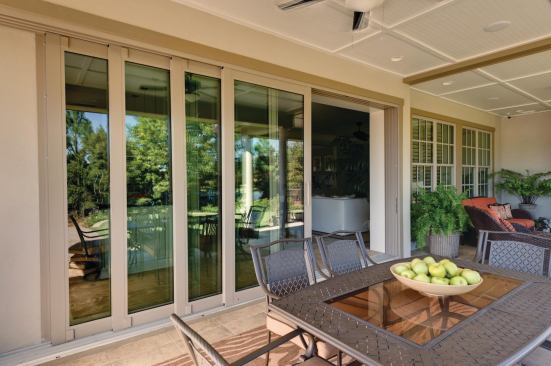

Open Up "I think of the outdoors as an extension of the home and frequently entertain on the patio of my farmhouse," Martha Stewart says. This plan follows suit. When the weather is nice, party guests and family time can spill from the kitchen onto a breezy, comfortable lanai with a casual dining area, grill, and fireside lounge. A detached deck down by the lake provides a quiet spot to watch the sunrise or serve as an outpost for a bar or a barbecue to encourage guests to use the entire yard.

James F. Wilson

Open Up "I think of the outdoors as an extension of the home and frequently entertain on the patio of my farmhouse," Martha Stewart says. This plan follows suit. When the weather is nice, party guests and family time can spill from the kitchen onto a breezy, comfortable lanai with a casual dining area, grill, and fireside lounge. A detached deck down by the lake provides a quiet spot to watch the sunrise or serve as an outpost for a bar or a barbecue to encourage guests to use the entire yard.

But the most unconventional aspect of this home, by far, is its value proposition. Aptly named, the GreenHouse is testing the premise that next-generation home buyers will be willing to spend a little more up front on green stuff if the payoff is lower long-term maintenance and utility costs. Unlike the commodity dwellings of the housing boom, this residence isn’t destined for a life of flipping. It’s more akin to a well-made Swiss watch, which comes with a slightly higher price tag, but lasts a lifetime.

Builders who believe that achieving net zero means higher material costs can feel validated in knowing they are correct. KB Home estimates the cost of greening this house at $70,000—roughly $60,000 of which can be attributed to its solar energy features (the other $10,000 went to HVAC upgrades and high-efficiency lighting and windows).

But those who assume that green building means throwing all of your established subcontractor relationships out the window may be interested in this little insight: “We did use specialists for the solar thermal and photovoltaic installations,” says Dan Bridleman, vice president of national purchasing and contracts for KB Home, which currently ranks as the nation’s fifth largest builder. “But otherwise we relied completely on our existing trade base to get this house built.” (See “Green in Balance,” page 7, for a detailed rundown of the home’s net-zero process and formula.)

1 of 15
1 of 14
1 of 16
1 of 16

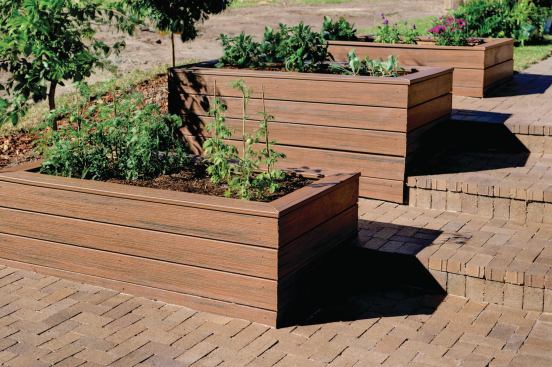

Well Contained Planter boxes make for a prettier backyard and provide a sunny spot to grow vegetables or cut flowers.

James F. Wilson

Well Contained Planter boxes make for a prettier backyard and provide a sunny spot to grow vegetables or cut flowers.

Is this a glimpse into production housing’s future? George Glance, president of KB Home’s Central Florida division, likes to think so. “This house is mainstream and something buyers can relate to,” he says. “It’s a functional, right-sized floor plan that is very livable and finely appointed. At the same time, it’s a very advanced house. If you have a million dollar budget that’s one thing, but when you’re operating with a sales price of $380,000, you really have to be efficient without compromising the function or finish of the home.”

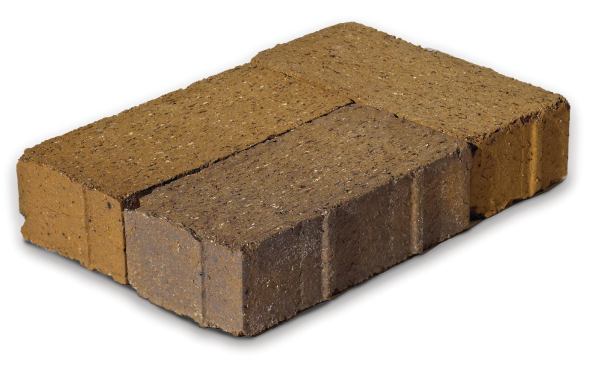

Sink In Permeable pavers in the driveway and front walk promote natural stormwater drainage. An opaque glass entry door by Therma-Tru provides privacy while allowing natural light to filter inside.

James F. Wilson

Sink In Permeable pavers in the driveway and front walk promote natural stormwater drainage. An opaque glass entry door by Therma-Tru provides privacy while allowing natural light to filter inside.

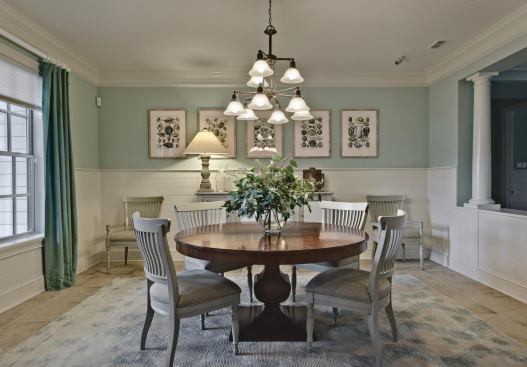

That's Entertainment Many of today's smaller homes deep-six the dining room in the name of downsizing, but the GreenHouse holds fast to this formal space as a staple for entertaining. Its crisp wainscoting is underscored by 18-inch-by-18-inch ceramic floor tiles from Shaw, which extend into the great room and kitchen.

James F. Wilson

That's Entertainment Many of today's smaller homes deep-six the dining room in the name of downsizing, but the GreenHouse holds fast to this formal space as a staple for entertaining. Its crisp wainscoting is underscored by 18-inch-by-18-inch ceramic floor tiles from Shaw, which extend into the great room and kitchen.

Pliable Plan KB Home's single-story "Katonah" plan lets buyers decide how they want to inhabit certain spaces. The "den," for example, can flex into a home office, playroom, media room, or fourth bedroom.

James F. Wilson

Pliable Plan KB Home's single-story "Katonah" plan lets buyers decide how they want to inhabit certain spaces. The "den," for example, can flex into a home office, playroom, media room, or fourth bedroom.

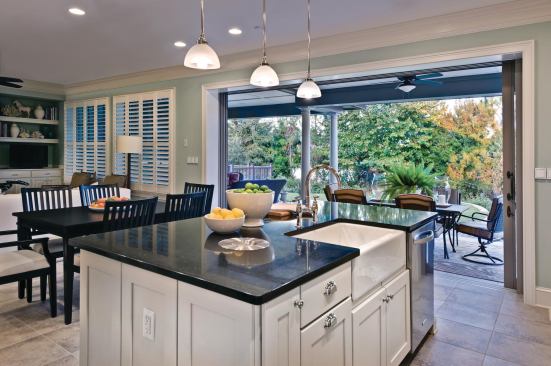

Big Island An island measuring 7 feet 6 inches by 4 feet 6 inches and topped with a Dupont Zodiaq quartz countertop (seen here in "licorice") provides a versatile surface for organizing, baking, food prep, and clean up. In lieu of a garbage disposal, the countertop includes a recessed, compost bin with a bucket handle for transporting vegetable scraps from kitchen to garden.

James F. Wilson

Big Island An island measuring 7 feet 6 inches by 4 feet 6 inches and topped with a Dupont Zodiaq quartz countertop (seen here in "licorice") provides a versatile surface for organizing, baking, food prep, and clean up. In lieu of a garbage disposal, the countertop includes a recessed, compost bin with a bucket handle for transporting vegetable scraps from kitchen to garden.

Holidays at Home A small house can accommodate big gatherings if it's designed right. This kitchen has everything a cook needs to prepare a feast for a large group, including a KitchenAid six-burner gas range with double ovens, LED can and pendant lights for task lighting, and a Kohler farmhouse sink that's big enough to wash a Thanksgiving turkey. Open shelves by Merillat provide display space for items that aren't used every day.

James F. Wilson

Holidays at Home A small house can accommodate big gatherings if it's designed right. This kitchen has everything a cook needs to prepare a feast for a large group, including a KitchenAid six-burner gas range with double ovens, LED can and pendant lights for task lighting, and a Kohler farmhouse sink that's big enough to wash a Thanksgiving turkey. Open shelves by Merillat provide display space for items that aren't used every day.

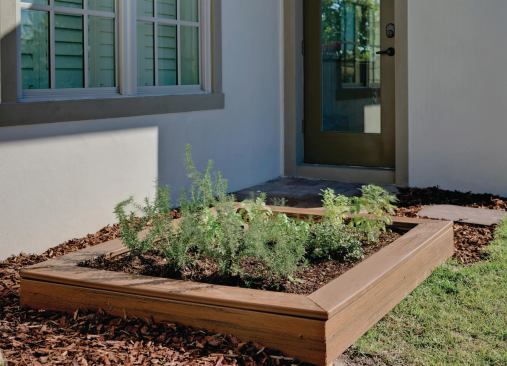

Secret Plot A small herb garden just outside the kitchen provides a pretty landscape element and makes for fresh and flavorful cooking. And, growing herbs costs less than buying them at the supermarket.

James F. Wilson

Secret Plot A small herb garden just outside the kitchen provides a pretty landscape element and makes for fresh and flavorful cooking. And, growing herbs costs less than buying them at the supermarket.

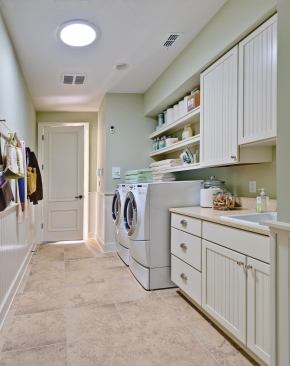

Chores to Adore A combination mudroom/laundry off the garage includes pretty beadboard cabinets by Merillat, a Shaker peg rail for coats and bags, and a large utility sink for hand-washing clothes, flower arranging, or pet bathing. A sun tunnel overhead brings in natural light without electricity.

James F. Wilson

Chores to Adore A combination mudroom/laundry off the garage includes pretty beadboard cabinets by Merillat, a Shaker peg rail for coats and bags, and a large utility sink for hand-washing clothes, flower arranging, or pet bathing. A sun tunnel overhead brings in natural light without electricity.

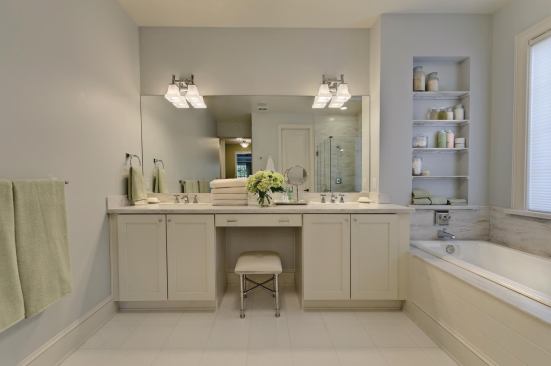

Clean Dream Light colors can be hard to keep clean, but not in this master bath. "Large slabs of Corian in the shower stall and tub surround create a streamlined look and are also easier to clean and care for," Martha Stewart explains, because they use less grout. Memoirs bath fixtures by Kohler complement the room's clean lines.

James F. Wilson

Clean Dream Light colors can be hard to keep clean, but not in this master bath. "Large slabs of Corian in the shower stall and tub surround create a streamlined look and are also easier to clean and care for," Martha Stewart explains, because they use less grout. Memoirs bath fixtures by Kohler complement the room's clean lines.

Breathe Deep The GreenHouse promotes healthy indoor air quality with low-VOC paints, stains, adhesives, and sealants. It's also equipped with a central vacuum system. Unlike portable vacuum devices, which tend to stir up dust and leave it hanging inside the home, this unit vents to the outside.

James F. Wilson

Breathe Deep The GreenHouse promotes healthy indoor air quality with low-VOC paints, stains, adhesives, and sealants. It's also equipped with a central vacuum system. Unlike portable vacuum devices, which tend to stir up dust and leave it hanging inside the home, this unit vents to the outside.

Thinking Green Martha Stewart, founder of MSLO, and Jeffrey Mezger, president and CEO of KB Home, at KB Home's Martha Stewart community at Stapleton, in Denver.

Courtesy KB Home

Thinking Green Martha Stewart, founder of MSLO, and Jeffrey Mezger, president and CEO of KB Home, at KB Home's Martha Stewart community at Stapleton, in Denver.

Project KB Home GreenHouse: An Idea Home Created With Martha Stewart

Location Windermere, Fla.

Builder KB Home, Orlando, Fla.

Architect KB Home Architecture, Los Angeles

Designer Martha Stewart Living Omnimedia, New York

Size 2,667 square feet

Lot size 70 x 120 feet

Cost per square foot about $140

Anticipated sale price $380,000

Added hard costs for green attributes $70,000

Increase in monthly mortgage payment to cover the green extras $350

Average monthly electric bill for conventional Orlando home $250-$350 per month

Average monthly electric bill for the GreenHouse $0

Certifications LEED for Homes-Platinum, Environments for Living Certified Green, EPA WaterSense, EPA Energy Star, IAPMO Green Plumbing Code

HERS rating 0

Construction cycle 90 days

Green in Balance

If you’ve seen one net zero–energy home, you haven’t seen them all. There are many different ways to craft a house that produces as much energy as it uses. It all boils down to strategy in the face of certain “givens,” such as location, climate, site conditions, budget, and available materials. The art and science is in the tweaking.

KB Home used energy modeling software to piece together the biggest green elements and gauge how they affected each other. “You have to look at this whole thing as a series of systems contributing to an end result,” explains KB Home vice president Dan Bridleman. “You can’t ever put your finger on this one thing that did it. Net zero is almost always accomplished through a combination of techniques.” Let it be noted that this combination rated LEED for Homes Platinum and qualified for Environments for Living Certified Green, EPA WaterSense, Energy Star, and IAPMO Green Plumbing certifications. Here’s how the GreenHouse got to zero and is doing its part to help the environment:

The Envelope

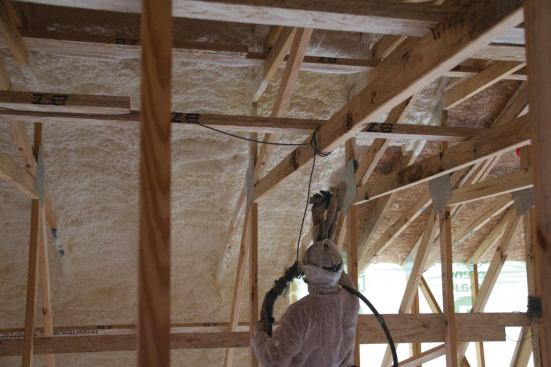

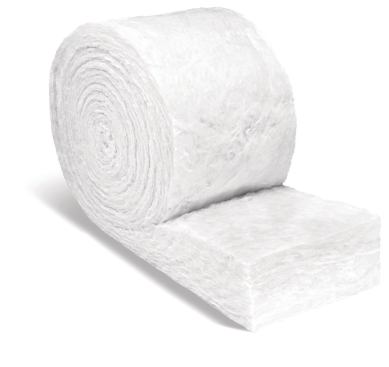

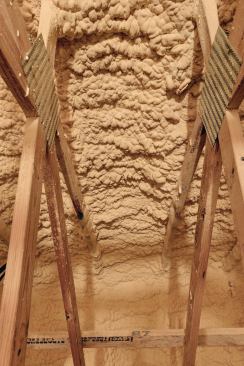

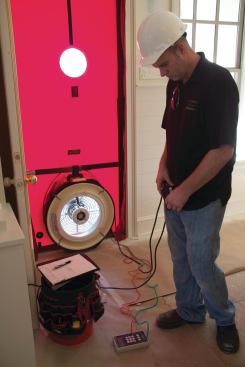

Any net zero endeavor must start with conservation—the logic being that saving energy is cheaper than producing it. In Florida’s hot and often muggy climate, conservation starts with an air-tight shell. Structurally, the Greenhouse is comprised of exterior cement block walls lined with a layer of Âľ-inch-thick rigid insulation and interior framing with FSC-certified wood. The critical piece is a sealed attic, which ensures the HVAC system isn’t forced to work harder than it has to. “We sprayed the roof deck with foam insulation, and on the roof we used Monier’s cool roof tile, which reflects the thermal properties of the sun,” Bridleman explains. As a result, the attic maintains a constant temperature within five to seven degrees of the rest of the house, even though it’s not conditioned space.

Air Handling

Heat and moisture are friends to mold, but not in this house. An energy recovery ventilator in the attic recaptures as much as 80 percent of conditioned temperatures that would otherwise be lost through exhaust airflows and transfers that energy to incoming fresh air. This unit, combined with a whole-house dehumidification system, reduces the home’s cooling loads by not allowing them to escalate in the first place.

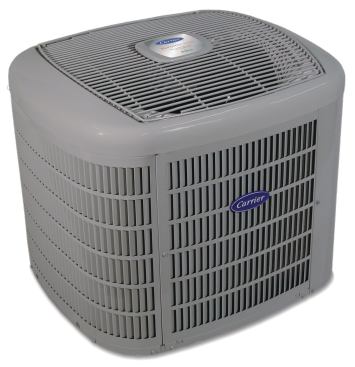

Then there’s the HVAC itself. “HVAC sizing is the biggest deal in the energy modeling equation because there are all kinds of things that can affect your energy usage, from heat-emitting light fixtures to appliances to vent fans in bathrooms, to people opening and closing exterior doors,” notes Chad Burlingame, director of purchasing and design for KB Home’s Orlando, Fla., division. All of those little details play into right-sizing an HVAC system that works efficiently and doesn’t provide more capacity than necessary. A conventionally built house of this size in Florida normally requires a five-ton HVAC system. This home lives comfortably with a two-ton, 19.5 SEER heat pump.

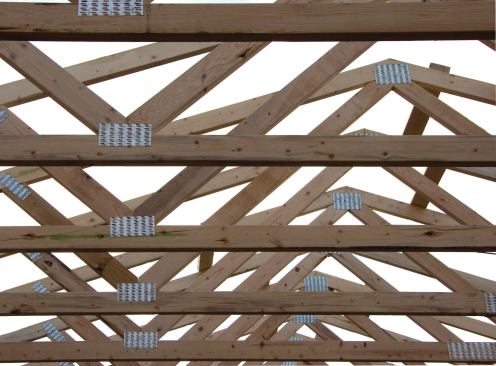

Building Components

Want to reduce construction waste? Don’t generate it in the first place. “Waste reduction starts with an accurate take-off so you are sending only what’s needed to the jobsite,” says George Glance, KB Home’s Central Florida division president. Building blocks in this home include pre-engineered trusses, floors, and panelized wall systems that reduce scrap lumber on site. Drywall and trim pieces left over during construction were recycled. With this approach, Glance estimates that the GreenHouse diverted 88 percent of the jobsite waste that a conventional home would normally send to the landfill.

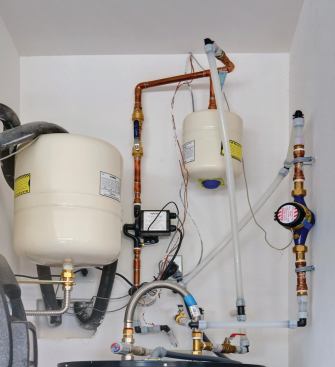

Water Usage

The average American household wastes more than 3,650 gallons of water each year while waiting for hot water to reach the tap, according to EPA estimates, and 10 percent to 15 percent of energy use in hot water systems is wasted in distribution losses. Not so in the GreenHouse, which runs on an on-demand hot water recirculation system in lieu of a traditional boiler. Water heated by rooftop solar panels is stored in an 80-gallon thermal tank and then circulated through a loop under the slab. Each plumbing run off of the main loop is less than 10 feet long. This configuration reduces the amount of piping needed, and there’s no waiting for a hot shower. Instant hot water is activated with the push of a button in the kitchen, while motion sensors trigger it automatically in faucets and showerheads whenever someone enters the bathroom.

There are other water-wise features to boot. Wet areas inside the home are outfitted with low-flow faucets and dual-flush toilets. Outside, rainwater collection tanks store runoff from downspouts and redistribute that water into the landscaping. Sink and shower water is also filtered and redistributed for irrigation. A WeatherSmart irrigation system assesses the amount of moisture in the soil and turns on the sprinkler systems only as needed.

Electricity

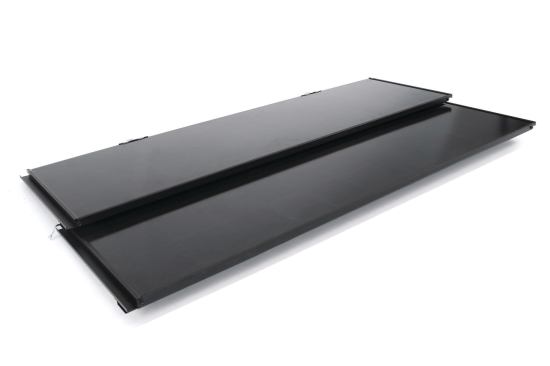

Roof-mounted photovoltaics (PV) were introduced only after all of the other building and product specs were in place to ensure maximum performance on the conservation side. “Raised panels would have been more efficient, but they are also more conspicuous, and sometimes you have to make aesthetic choices,” Bridleman says. “We ended up choosing a flat panel PV system which isn’t quite as efficient, but it looks better on the house.” The 8.57 kilowatt roof system is expected to generate about 10,000 kW of electricity annually—enough to match the home’s anticipated energy consumption, which includes an electric car charging station in the garage. Although the PV system added an extra $60,000 in hard costs, the homeowner is eligible for a 30 percent federal tax credit as a result.

Homeowner Education

The final variable in any net-zero equation is consumer behavior. The GreenHouse is equipped with a simple energy monitoring system that allows homeowners to keep an eye on their electric, water, and gas consumption/production, tracking their usage history by the day, hour, week, or month, by peak usage times, and by dollar amounts. “The system even makes suggestions,” Bridleman says. “For example, during peak usage it can tell you how to adjust things like lighting controls or the condensing units in your fridge to save energy. You can access the system from home or via an application on your smart phone.”

For a virtual tour of the Builder Concept Home 2011, visit www.builderconcepthome2011.com.

How Did Our GreenHouse Grow?

Builder‘s Concept Home 2011 could not have been built without the support of its many sponsors and donors, a select group of building products manufacturers and suppliers that contributed to this net zero–energy endeavor. Below is a list of these companies, indicating their level of sponsorship and the products they provided.

Cornerstone

Masco www.masco.com

Foundation

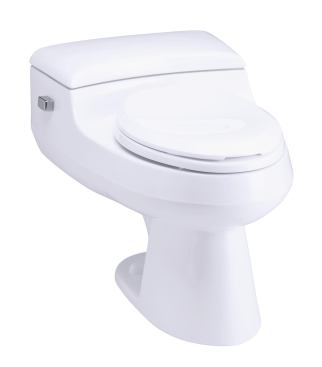

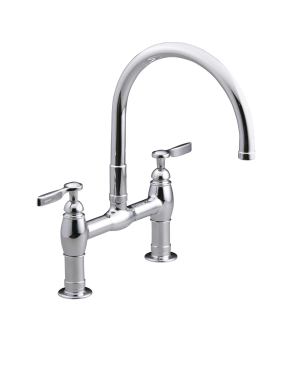

Kohler (plumbing fixtures and fittings) www.kohler.com
Merillat (cabinets and built-ins) www.merillat.com

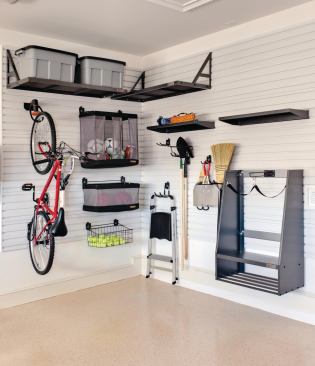

Whirlpool Corp. (major appliances and garage storage systems) www.whirlpool.com

Supporting

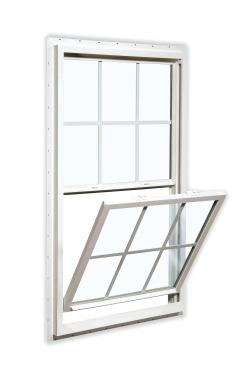

Atrium Windows & Doors (windows) www.atrium.com
Carrier (HVAC equipment and thermostats) www.carrier.com
DuPont Building Innovations (Corian and Zodiaq countertops and solid surfacing) www2.dupont.com

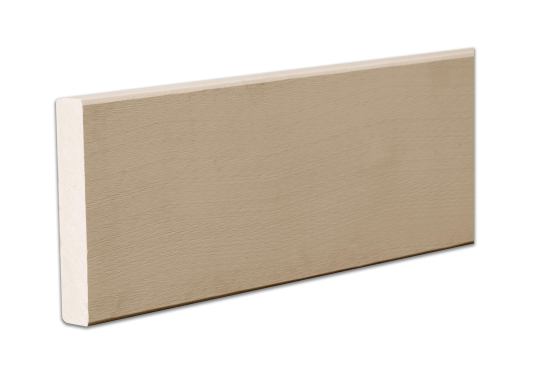

James Hardie Building Products (exterior siding and trim) www.jameshardie.com

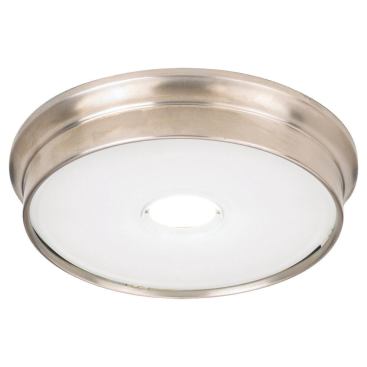

Sea Gull Lighting (interior and exterior lighting) www.seagulllighting.com

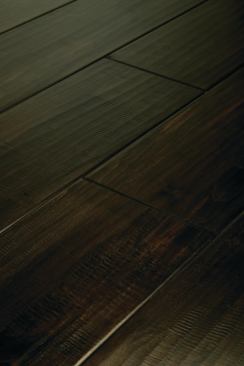

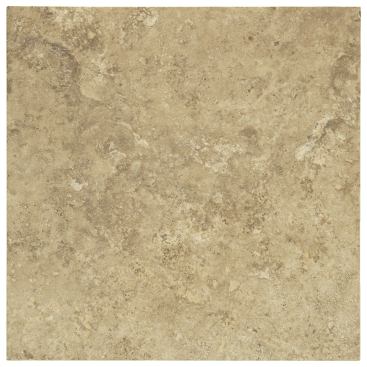

Shaw Floors (flooring) www.shawfloors.com

Performance

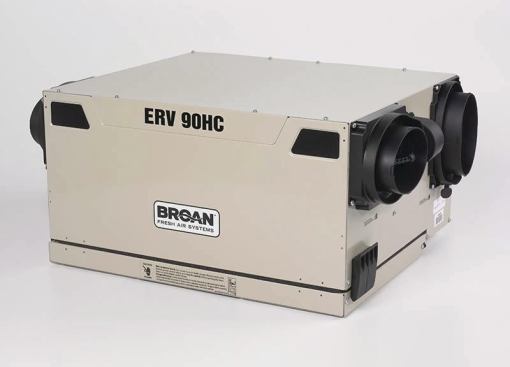

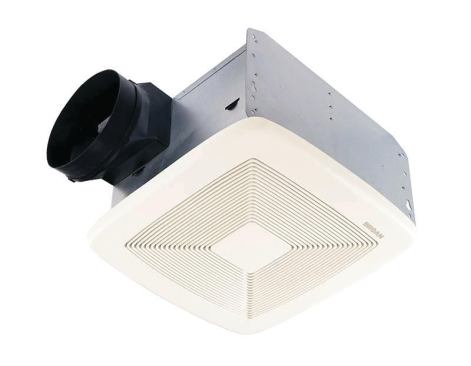

Broan-NuTone (energy recovery ventilator and spot ventilation) www.broan.com
Environments for Living (green inspections, testing, and HERS rating assessment) www.environmentsforliving.com

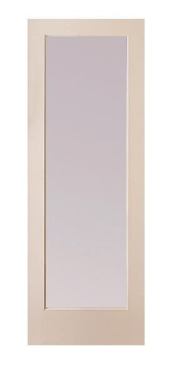

JELD-WEN (interior doors) www.jeld-wen.com
Johns Mansville (insulation) www.jm.com

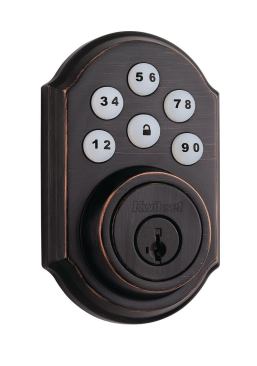

Kwikset (door handles and locksets) www.kwikset.com
Masco Contractor Services (insulation installation) www.mascocs.com
SunPower (photovoltaic panels) www.sunpowercorp.com
Therma-Tru Doors (entry door systems) www.thermatru.com
VELUX America (solar thermal system and sun tunnel) www.velux.com
Verve Living Systems (lighting controls and online energy monitoring system) www.vervelivingsystems.com

Alliance

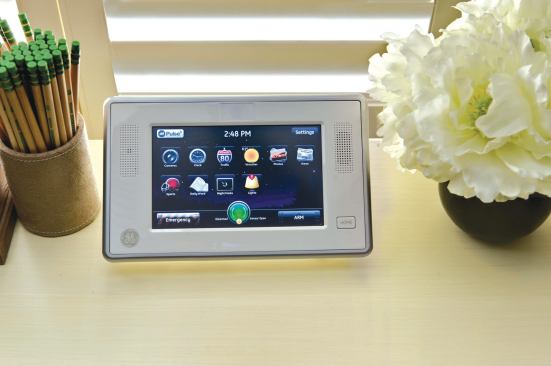

ADT Security Services (home security and automation) www.adtpulse.com
AkzoNobel (paint – Martha Stewart Living series) www.akzonobel.com
Atlantic Premium Shutters (exterior shutters) www.atlanticpremiumshutters.com

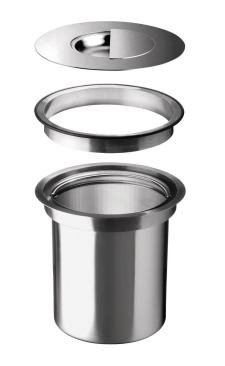

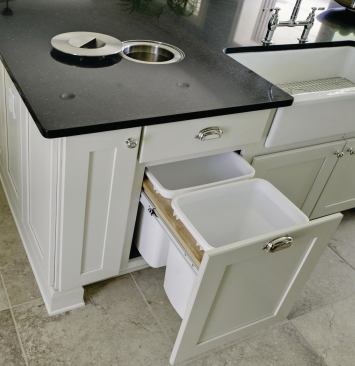

Blanco (composter – kitchen island top) www.blancoamerica.com

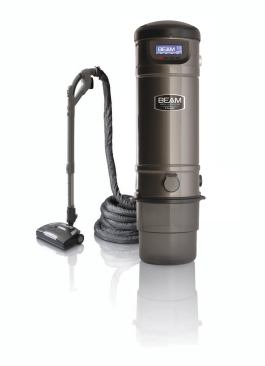

Electrolux Central Vacuum Systems/Beam (central vacuum) www.beamvac.com
Fiberweb/Typar (housewrap, window flashing, and weed and root control) www.typar.com
Fypon (exterior trim) www.fypon.com

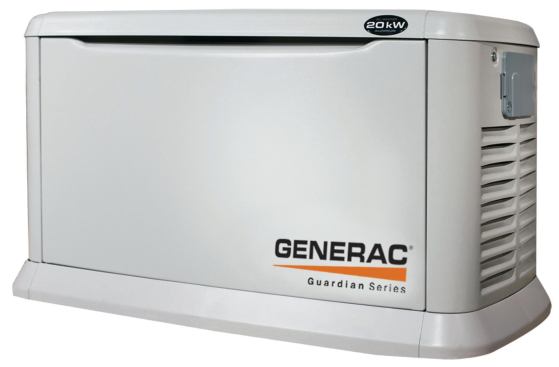

Generac Power Systems (standby generator and transfer switch) www.generac.com

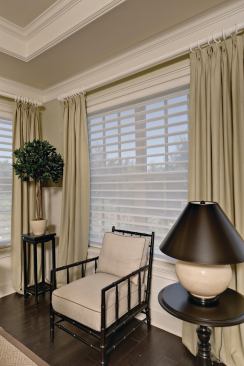

Hunter Douglas (window treatments) www.hunterdouglas.com
IAPMO R&T (plumbing and mechanical product certification) www.iapmort.org
Lennox Hearth Products (gas fireplaces) www.lennoxhearthproducts.com
Linear (structured wiring system, whole-house audio, and intercom) www.linearcorp.com

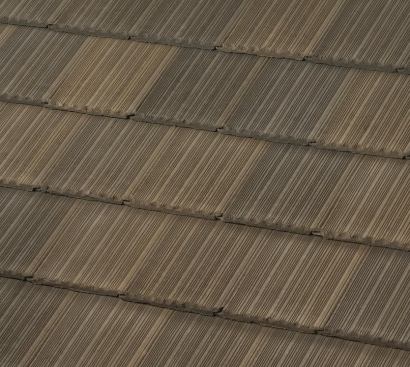

MonierLifetile a Boral Roofing Co. (roofing) www.monierlifetile.com

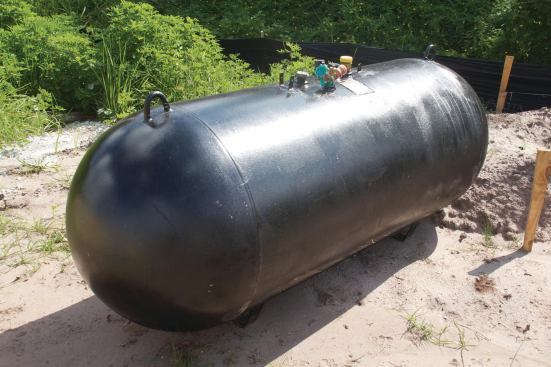

Propane Education & Research Council (PERC) (propane tank) www.buildwithpropane.com

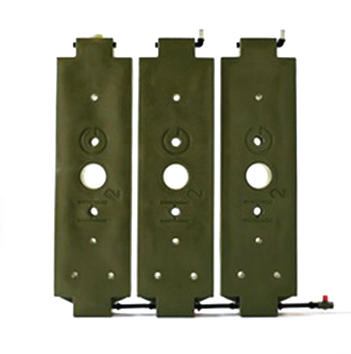

Rainwater HOG (rainwater storage) www.rainwaterhog.com
Schulte (closet and pantry storage systems) www.schultestorage.com

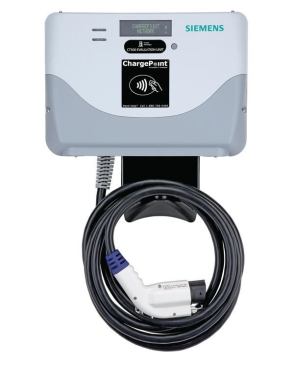

Siemens (load centers, circuit breakers, AFCIs, and electric car charger) www.usa.siemens.com
Stock Building Supply (structural lumber and building components) www.stockbuildingsupply.com

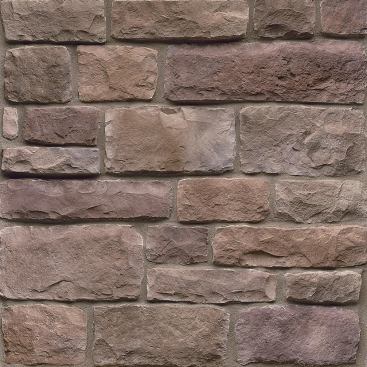

StoneCraft (stone veneer) www.stonecraft.com
TimberTech (decking and railings) www.timbertech.com
Uponor (PEX plumbing system, including D’Mand recirculation system and Purple Pipe graywater irrigation tubing) www.uponor-usa.com
Waste Management (job site recycling and waste management) www.wm.com

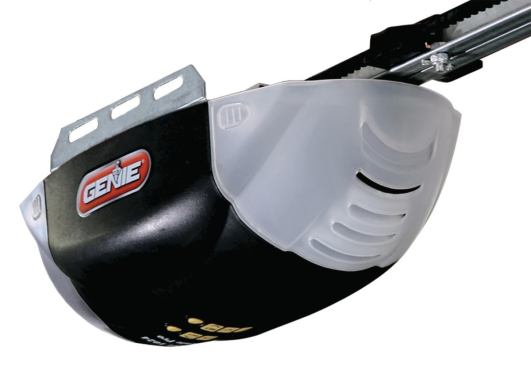

Wayne-Dalton (garage door and opener) www.wayne-dalton.com
WinDoor (telescoping patio door) www.windoorinc.com

Donations

Boral (concrete pavers) www.boralbricks.com
Liberty Hardware (Martha Stewart Living hardware) www.libertyhardware.com

Take The Tour

The KB Home GreenHouse: An Idea Home Created With Martha Stewart is open for free guided tours during exhibit hours of the International Builders’ Show, with free shuttle service from the Westwood Entrance of the West Concourse of the convention center. To reserve a seat on the bus, visit the Show Home Tours booth inside the main entrance to the West Concourse.

Driving directions: Go southbound on International Drive to West 528/I-4. Take I-4 West exit (Tampa). Take Lake Buena Vista/SR 535 exit; turn right onto SR 535. Left on CR 535/Winter Garden Vineland Rd. Travel approximately six miles to right on Carlow Court (Lake Burden). Right onto Lake Albert Drive. Home is on the right, just past Jasper Kay Terrace.

KB Home GreenHouse
7521 Lake Albert Dr.
Windermere, FL 34786
